- Project No:
- 8901
- Project Title:
- Iskenderun Sewage System and Waste Water Treatment
- Client:
- Iskenderun Municipality
- Start - Finish:
- 1989 - 1992
- Venture Type:
- Alone
Detailed Description:
The project was financed by World Bank within the scope of Cukurova Urban Development Project and completed by taking into consideration 438,030 population of Iskenderun at year 2020. All the engineering works for the following items have been approved by World Bank

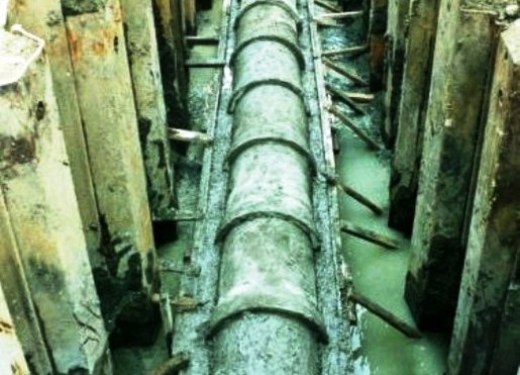

Sewage System
140,199 m, 200 mm - 600 mm Concrete Pipe Laying
5,441 m, 700 mm - 900 mm Concrete Pipe Laying
5,082 each Vent
3,665 each Service Connection
3 each 140 lt/sec, h=13 m, Underground Pumping Station with Centrifuge Pump
15/0.4 kV, 160 kVA Transformer Station with Diesel-Generator
Stormwater Drainage System
28,570 m, 200 mm - 600 mm Concrete Pipe Laying
3,600 m, 700 mm - 900 mm Concrete Pipe Laying
20,723 m, 160 mm PVC Pipe Laying
801 each Vent
Concrete Drainage Channels
4 each 475 lt/sec, h=7 m, Underground Pumping Station with Centrifuge Pump
3 each 390 lt/sec, h=6.5 m, Underground Pumping Station with Centrifuge Pump
2 each 400 lt/sec, h=6 m, Underground Pumping Station with Centrifuge Pump
15/0.4 kV, 315 kVA Transformer Station with Diesel-Generator
Waste Water Treatment Plant
Waste Water Treatment Plant for 438,030 Population of Iskenderun at Year 2020.
Services Provided By ESER
Detailed Engineering
Cost Estimations
Tender Evaluation
Tender Documentation
Construction Specifications
Construction Management
Commissioning
Start-up Inspections
Geophysical Studies
Geotechnical Studies
Project Management
Topographical Surveys
