- Project No:
- 0509
- Project Title:
- Mergasur Water Supply System - IRAQ
- Client:
- Arge Construction Inc.
- Start - Finish:
- 2005 - 2007
- Venture Type:
- Alone
Detailed Description:
INTAKE STRUCTURE on BARDARI SPRINGS (32.500 cum/day)
Intake Basin (246 sqm)
Pump House and Storage Tank (400 sqm)
Guard Room, Generator Building, Access Road
INTAKE STRUCTURE on CHAMA RIVER (32.500 cum/day)
Intake Structure (Diversion Weir)
Pump House and Storage Tank (400 sqm)
Guard Room, Generator Building, Access Road

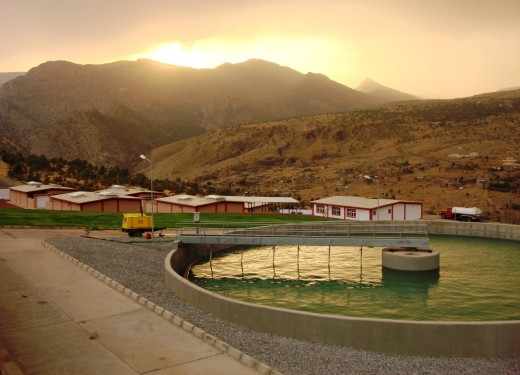

CHAMA WATER TREATMENT PLANT (32,500 cum/day)
Administration Building (197 sqm), Water Storage Tank (4,500 cum)
Pump House (370 sqm), Reception and Guard Room (45 sqm)
Generator Building (163 sqm), Car Parking Garage (90 sqm)
Filter Building (556 sqm), Chlorination Building (259 sqm), Chemical Building (580 sqm)
Sedimentation Tanks (2 each, 26 m dia , 8.5 m height, 4,690 cum)
Staff Houses (4 each x 200 sqm), Access Road
KANI LINJ PUMP STATION

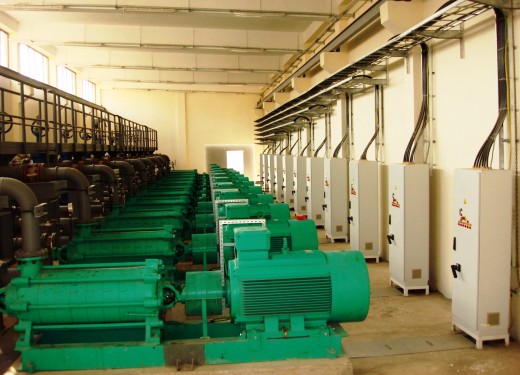

Water Storage Tank (2,750 cum), High Lift Pump Station (425 sqm)
Guard Room, Generator Building, Car Parking Garage, Access Road
MALASUWAR PUMP STATION
Water Storage Tank (2,000 cum), High Lift Pump Station (320 sqm)
Guard Room, Generator Building, Car Parking Garage, Access Road
MERGASUR MAIN STORAGE TANK
Water Storage Tank (4,000 cum), Generator Shed (10 sqm)
Guard Room, Car Parking Garage, Access Road
BERSIAW MAIN STORAGE TANK
Water Storage Tank (2, 700 cum)
Guard Room, Car Parking Garage, Generator Shed, Access Road
BANA MAIN STORAGE TANK
Water Storage Tank (2,700 cum)
Guard Room, Car Parking Garage, Generator Shed, Access Road
PIPELINES

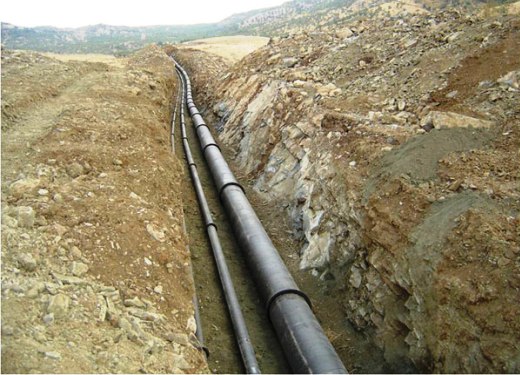

Main, Sub-Main and Branch Pipelines to Villages
Ductile Iron Pipes Class=K9
100,150,200,250,300,500 and 600 mm diameter
30.8 km Forced Lines, 80.2 km Gravity Lines
Pipelines Plan and Profiles, Hydraulic Profiles
Appurtenant Structures, Discharge Lines, Thrust Blocks and Crossing Structures
Water Hammer Calculations of Forced Main Lines
WATER STORAGE TANKS in VILLAGES
Type 1 Storage Tank 26 Each ( 89 cum)
Type 2 Storage Tank 10 Each (223 cum)
Type 3 Storage Tank 6 Each (315 cum)
Services Provided By ESER
Detailed Engineering
Construction Shop Drawings
Geophysical Studies
Geotechnical Studies
Topographical Surveys
