- Project No:
- 9013
- Project Title:
- West Turkey Natural Gas Distribution System - Phase 2
- Client:
- Arset Inc.
- Start - Finish:
- 1991 - 1992
- Venture Type:
- Alone
Detailed Description:
At Bursa, Gursu, Demirtas, Gemlik, Orhangazi, Yalova, Eskisehir, Bozuyuk, Corlu, Cerkezkoy, Cayirova, Dilovasi and Buyukcekmece Locations :
14500 m, 2 inch PE Coated Steel Pipe
16500 m, 4 inch PE Coated Steel Pipe
18700 m, 6 inch PE Coated Steel Pipe
28400 m, 8 inch PE Coated Steel Pipe
37000 m, 12 inch PE Coated Steel Pipe
5000 m, 18 inch PE Coated Steel Pipe

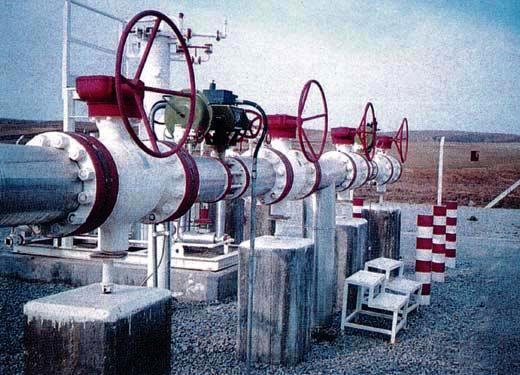

2 each 75/19-28 Bar RMS A Type Pressure Reducing and Metering Station
61 each 40/16 Bar RMS B Type Pressure Reducing and Metering Station
1 each 16/4 Bar RMS B Type Pressure Reducing and Metering Station
Heaters, Filters, Regulators and Metering Sets at Stations
Pipeline Plan and Profiles
Highway, Railway and River Crossings (8,10,12 and 22 inch)
Station Piping Plans and Isometrics
LV and HV Power Supply to Stations
Cathodic Protection Systems
Control and Instrumentation Systems
Services Provided By ESER
Detailed Engineering
Construction Shop Drawings
Construction Supervision
Operating and Maintenance Instructions
Commissioning
Start-up Inspections
Topographical Surveys
